Installing Oracle SOA Suite/JDeveloper 11g

This post guides you through the installation of the Oracle SOA Suite 11g with JDeveloper 11 with the use of Oracle XE database (for Windows).
Note: It is assumed that Oracle XE database is already installed.

Required downloads

The detailed steps are nicely described here.
The next picture gives a nice overview of the directory structure created.

Step1 -  Create Schemas for Oracle SOA Suite and Oracle BAM (RCU)

  • Unzip the files
  • Run bin/rcu.bat
  • At the Database Connection Details fill in the XE details. If you encounter the next fault you have probably not started the XE database.

  •   Ignore all warnings

  • Click OK
  • Select all components

  • I ran into the following problem:

When you click Ok you see the following error:

And this is about the Processes DB Init parameter that is wrong.
To fix this goto the Database Home page, Sql Editor and execute the following statements:
alter system set PROCESSES=500 scope=SPFILE;
alter system set open_cursors=500 scope=SPFILE;
If everything is ok you should see the next screen.
  • Further ignore errors from portal installation

Step 2 - Install Oracle WebLogic Server and Create the Middleware Home
  • Run wls1031_win32.exe
  • Choose Middleware Home (example: d:\oracle\middleware)
  • Register for security updates, leave empty, Next
  • Choose Typical install type
  • Choose Weblogic Server Home (example: d:\oracle\middleware\wlserver_10.3)
  • The next screens choose Next and the installation progress screen is shown
  • After a while you are done with this step
Step 3 - Installing SOA Suite and BAM
  • Unzip ofm_soa_generic_11.
  • Run setup.exe within Disk1 directory
  • When asked for the Java jre use middleware home (d:\oracle\middleware\jdk160_11\jre)
  • When the checks are finished the installation locations are asked:
    Use the Middleware Home (selected by default) and use Oracle_SOA1 (also default)
  • The following components are installed: BPEL PM, Mediator, Rules, B2B, Human Workflow, BAM

Step 4 - Creating Domain

  • Run Configuration Application Server within SOA
  • Create a New Domain
  • Select all products to be supported
  • Enter a Domain name
  • Configure JDBC Component Schema

  • Select all optional configuration

  • Configure the Administration Server, leave unchanged
  • Configure Managed Servers, leave unchanged
  • Configure Clusters, leave unchanged
  • Configure Machines, leave unchanged
  • Assign Servers to Machines, leave unchanged
  • Target Deployments to Clusters or Servers, leave unchanged
  • Target Services to Clusters or Servers, leave unchanged
  • Configure JMS File Stores, leave unchanged
  • Configure RDBMS Security Store Database, leave unchanged
  • Summary
  • Create
Step 5 - Install JDeveloper
  • Run jdevstudio11111install.exe
  • Choose the existing Middleware Home directory
  • The rest is Next, Next, ...
  • After JDeveloper is installed start JDeveloper
  • Choose Help -> Check for Updates
  • On the Source page choose:

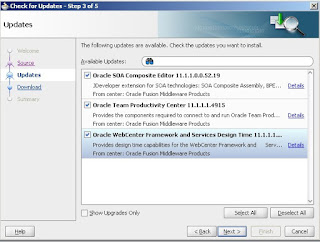

  • On the Update page select the extensions to download

  • Note: You need an Oracle Web Account.
  • After the download is finished you have to restart JDeveloper.
That's it and now you can start developing SOA components using SCA, but that is an item for another blog item ;)
